llmx::rtaco::RouteDumpTask Class Reference

Task that performs a full route table dump from the kernel. More...

#include <nl_route_dump_task.hxx>

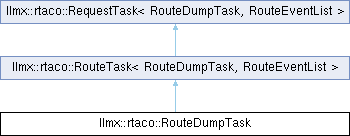

Inheritance diagram for llmx::rtaco::RouteDumpTask:

Public Member Functions
	RouteDumpTask (SocketGuard &socket_guard, std::pmr::memory_resource *pmr, uint16_t ifindex, uint32_t sequence) noexcept
	Construct a RouteDumpTask.
void	prepare_request ()
	Prepare the netlink request to dump routes.
auto	process_message (const nlmsghdr &header) -> std::optional< std::expected< RouteEventList, std::error_code > >
	Process a received netlink message for route dump responses.
Public Member Functions inherited from llmx::rtaco::RouteTask< RouteDumpTask, RouteEventList >
auto	request_payload () const -> std::span< const uint8_t >
	Get the serialized request payload for the route request.
Public Member Functions inherited from llmx::rtaco::RequestTask< RouteDumpTask, RouteEventList >
	RequestTask (SocketGuard &socket_guard, uint16_t ifindex, uint32_t sequence) noexcept
	Construct a RequestTask.
virtual	~RequestTask ()=default
	Virtual destructor.
auto	async_run () -> boost::asio::awaitable< std::expected< RouteEventList, std::error_code > >
	Run the request asynchronously and return the result.

Private Member Functions
auto	handle_done () -> std::expected< RouteEventList, std::error_code >
auto	handle_error (const nlmsghdr &header) -> std::expected< RouteEventList, std::error_code >
auto	dispatch_route (const nlmsghdr &header) -> std::optional< std::expected< RouteEventList, std::error_code > >

Private Attributes
RouteEventList	learned_

Additional Inherited Members
Protected Member Functions inherited from llmx::rtaco::RouteTask< RouteDumpTask, RouteEventList >
void	build_request (uint16_t msg_flags, uint8_t address_family, uint8_t route_table, uint8_t scope, uint8_t protocol)
Protected Member Functions inherited from llmx::rtaco::RequestTask< RouteDumpTask, RouteEventList >
auto	socket () noexcept -> Socket &
auto	sequence () const noexcept -> uint32_t
auto	ifindex () const noexcept -> uint16_t
Protected Attributes inherited from llmx::rtaco::RouteTask< RouteDumpTask, RouteEventList >
RouteRequest	request_

Detailed Description

Task that performs a full route table dump from the kernel.

Sends an RTM_GETROUTE dump request and collects RouteEvent messages emitted by the kernel until completion, returning the collected list.

Constructor & Destructor Documentation

RouteDumpTask()

llmx::rtaco::RouteDumpTask::RouteDumpTask ( SocketGuard & socket_guard, std::pmr::memory_resource * pmr, uint16_t ifindex, uint32_t sequence )

noexcept

Construct a RouteDumpTask.

Parameters

socket_guard	Socket guard used for netlink I/O.
pmr	Memory resource for event list allocations.
ifindex	Target interface index (0 = all).
sequence	Netlink message sequence number.

Member Function Documentation

dispatch_route()

auto llmx::rtaco::RouteDumpTask::dispatch_route ( const nlmsghdr & header ) -> std::optional< std::expected< RouteEventList, std::error_code > >

private

handle_done()

auto llmx::rtaco::RouteDumpTask::handle_done ( ) -> std::expected< RouteEventList, std::error_code >

private

handle_error()

auto llmx::rtaco::RouteDumpTask::handle_error ( const nlmsghdr & header ) -> std::expected< RouteEventList, std::error_code >

private

prepare_request()

void llmx::rtaco::RouteDumpTask::prepare_request

(

)

Prepare the netlink request to dump routes.

process_message()

auto llmx::rtaco::RouteDumpTask::process_message

(

const nlmsghdr &

header

)

-> std::optional< std::expected< RouteEventList, std::error_code > >

Process a received netlink message for route dump responses.

Parameters

header

Netlink message header.

Returns

Optional expected with RouteEventList on completion or an error.

Member Data Documentation

learned_

RouteEventList llmx::rtaco::RouteDumpTask::learned_

private

---

The documentation for this class was generated from the following files:

• nl_route_dump_task.hxx
• nl_route_dump_task.cxx
