llmx::rtaco::NeighborDumpTask Class Reference

Task that performs a complete neighbor table dump. More...

#include <nl_neighbor_dump_task.hxx>

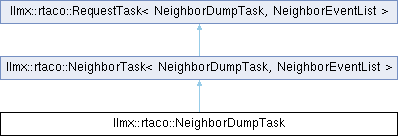

Inheritance diagram for llmx::rtaco::NeighborDumpTask:

Public Member Functions
	NeighborDumpTask (SocketGuard &socket_guard, std::pmr::memory_resource *pmr, uint16_t ifindex, uint32_t sequence) noexcept
	Construct a NeighborDumpTask.
void	prepare_request ()
	Prepare the netlink request to dump neighbor entries.
auto	process_message (const nlmsghdr &header) -> std::optional< std::expected< NeighborEventList, std::error_code > >
	Process a received neighbor-related netlink message.
Public Member Functions inherited from llmx::rtaco::NeighborTask< NeighborDumpTask, NeighborEventList >
auto	request_payload () const -> std::span< const uint8_t >
	Get the serialized request payload for the neighbor request.
Public Member Functions inherited from llmx::rtaco::RequestTask< NeighborDumpTask, NeighborEventList >
	RequestTask (SocketGuard &socket_guard, uint16_t ifindex, uint32_t sequence) noexcept
	Construct a RequestTask.
virtual	~RequestTask ()=default
	Virtual destructor.
auto	async_run () -> boost::asio::awaitable< std::expected< NeighborEventList, std::error_code > >
	Run the request asynchronously and return the result.

Private Member Functions
auto	handle_done () -> std::expected< NeighborEventList, std::error_code >
auto	handle_error (const nlmsghdr &header) -> std::expected< NeighborEventList, std::error_code >
auto	dispatch_neighbor (const nlmsghdr &header) -> std::optional< std::expected< NeighborEventList, std::error_code > >

Private Attributes
NeighborEventList	learned_

Additional Inherited Members
Protected Member Functions inherited from llmx::rtaco::NeighborTask< NeighborDumpTask, NeighborEventList >
void	build_request (uint16_t msg_type, uint16_t msg_flags, uint16_t ndm_state, uint8_t ndm_flags, std::span< uint8_t, 16 > address)
Protected Member Functions inherited from llmx::rtaco::RequestTask< NeighborDumpTask, NeighborEventList >
auto	socket () noexcept -> Socket &
auto	sequence () const noexcept -> uint32_t
auto	ifindex () const noexcept -> uint16_t
Protected Attributes inherited from llmx::rtaco::NeighborTask< NeighborDumpTask, NeighborEventList >
NeighborRequest	request_

Detailed Description

Task that performs a complete neighbor table dump.

Sends an RTM_GETNEIGH dump request and gathers NeighborEvent entries until the dump completes, returning the accumulated list or an error.

Constructor & Destructor Documentation

NeighborDumpTask()

llmx::rtaco::NeighborDumpTask::NeighborDumpTask ( SocketGuard & socket_guard, std::pmr::memory_resource * pmr, uint16_t ifindex, uint32_t sequence )

noexcept

Construct a NeighborDumpTask.

Parameters

socket_guard	Reference to the socket guard used for netlink I/O.
pmr	Memory resource for event list allocations.
ifindex	Target interface index (0 = all).
sequence	Netlink message sequence number.

Member Function Documentation

dispatch_neighbor()

auto llmx::rtaco::NeighborDumpTask::dispatch_neighbor ( const nlmsghdr & header ) -> std::optional< std::expected< NeighborEventList, std::error_code > >

private

handle_done()

auto llmx::rtaco::NeighborDumpTask::handle_done ( ) -> std::expected< NeighborEventList, std::error_code >

private

handle_error()

auto llmx::rtaco::NeighborDumpTask::handle_error ( const nlmsghdr & header ) -> std::expected< NeighborEventList, std::error_code >

private

prepare_request()

void llmx::rtaco::NeighborDumpTask::prepare_request

(

)

Prepare the netlink request to dump neighbor entries.

process_message()

auto llmx::rtaco::NeighborDumpTask::process_message

(

const nlmsghdr &

header

)

-> std::optional< std::expected< NeighborEventList, std::error_code > >

Process a received neighbor-related netlink message.

Parameters

header

Netlink message header.

Returns

Optional expected with NeighborEventList on completion or an error.

Member Data Documentation

learned_

NeighborEventList llmx::rtaco::NeighborDumpTask::learned_

private

---

The documentation for this class was generated from the following files:

• nl_neighbor_dump_task.hxx
• nl_neighbor_dump_task.cxx
