llmx::rtaco::AddressDumpTask Class Reference

Task that performs a full address dump from the kernel. More...

#include <nl_address_dump_task.hxx>

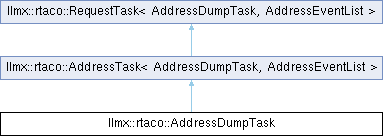

Inheritance diagram for llmx::rtaco::AddressDumpTask:

Public Member Functions
	AddressDumpTask (SocketGuard &socket_guard, std::pmr::memory_resource *pmr, uint16_t ifindex, uint32_t sequence) noexcept
	Construct an AddressDumpTask.
void	prepare_request ()
	Prepare the netlink request to perform an address dump.
auto	process_message (const nlmsghdr &header) -> std::optional< std::expected< AddressEventList, std::error_code > >
	Process a received netlink message for address dump responses.
Public Member Functions inherited from llmx::rtaco::AddressTask< AddressDumpTask, AddressEventList >
auto	request_payload () const -> std::span< const uint8_t >
	Get the serialized request payload for sending.
Public Member Functions inherited from llmx::rtaco::RequestTask< AddressDumpTask, AddressEventList >
	RequestTask (SocketGuard &socket_guard, uint16_t ifindex, uint32_t sequence) noexcept
	Construct a RequestTask.
virtual	~RequestTask ()=default
	Virtual destructor.
auto	async_run () -> boost::asio::awaitable< std::expected< AddressEventList, std::error_code > >
	Run the request asynchronously and return the result.

Private Member Functions
auto	handle_done () -> std::expected< AddressEventList, std::error_code >
auto	handle_error (const nlmsghdr &header) -> std::expected< AddressEventList, std::error_code >
auto	dispatch_address (const nlmsghdr &header) -> std::optional< std::expected< AddressEventList, std::error_code > >

Private Attributes
AddressEventList	learned_

Additional Inherited Members
Protected Member Functions inherited from llmx::rtaco::AddressTask< AddressDumpTask, AddressEventList >
void	build_request (uint16_t msg_flags=NLM_F_REQUEST|NLM_F_DUMP, uint8_t address_family=RTN_UNSPEC, uint8_t prefixlen=0, uint8_t ifa_flags=0, uint8_t scope=RT_SCOPE_UNIVERSE)
Protected Member Functions inherited from llmx::rtaco::RequestTask< AddressDumpTask, AddressEventList >
auto	socket () noexcept -> Socket &
auto	sequence () const noexcept -> uint32_t
auto	ifindex () const noexcept -> uint16_t
Protected Attributes inherited from llmx::rtaco::AddressTask< AddressDumpTask, AddressEventList >
AddressRequest	request_

Detailed Description

Task that performs a full address dump from the kernel.

Sends an RTM_GETADDR dump request and accumulates AddressEvents as responses are received. The task completes when an NLMSG_DONE message is encountered and returns the collected AddressEventList or an error.

Constructor & Destructor Documentation

AddressDumpTask()

llmx::rtaco::AddressDumpTask::AddressDumpTask ( SocketGuard & socket_guard, std::pmr::memory_resource * pmr, uint16_t ifindex, uint32_t sequence )

noexcept

Construct an AddressDumpTask.

Parameters

socket_guard	Reference to the socket guard used for sending and receiving netlink requests.
pmr	Memory resource used for allocations of the returned event list.
ifindex	Interface index to target (0 = all interfaces).
sequence	Netlink message sequence number for requests.

Member Function Documentation

dispatch_address()

auto llmx::rtaco::AddressDumpTask::dispatch_address ( const nlmsghdr & header ) -> std::optional< std::expected< AddressEventList, std::error_code > >

private

handle_done()

auto llmx::rtaco::AddressDumpTask::handle_done ( ) -> std::expected< AddressEventList, std::error_code >

private

handle_error()

auto llmx::rtaco::AddressDumpTask::handle_error ( const nlmsghdr & header ) -> std::expected< AddressEventList, std::error_code >

private

prepare_request()

void llmx::rtaco::AddressDumpTask::prepare_request

(

)

Prepare the netlink request to perform an address dump.

process_message()

auto llmx::rtaco::AddressDumpTask::process_message

(

const nlmsghdr &

header

)

-> std::optional< std::expected< AddressEventList, std::error_code > >

Process a received netlink message for address dump responses.

Parameters

header

Reference to the received netlink message header.

Returns

Optional expected containing the accumulated AddressEventList on completion, or an error_code on failure.

Member Data Documentation

learned_

AddressEventList llmx::rtaco::AddressDumpTask::learned_

private

---

The documentation for this class was generated from the following files:

• nl_address_dump_task.hxx
• nl_address_dump_task.cxx
